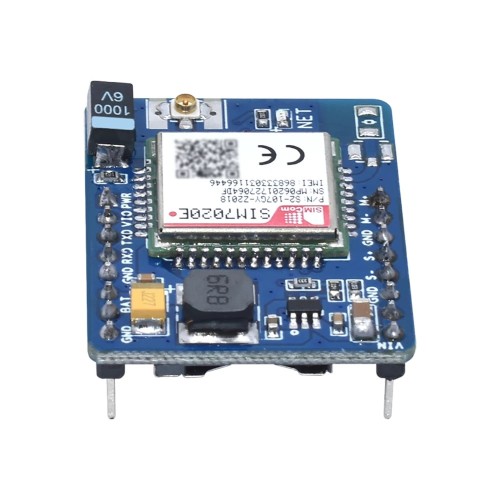

Sim800 / SIM7020E Simcom LTE NB-IoT M2M Modül IMEI Kayıtlı

The SIM7020 is Multi-Band NB-IoT module solution in a SMT type . It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application. The package of SIM7020 is compatible with SIM800C. This also minimizes the investments of customers, and enables a short time-to-market.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..


General features
    SIM7020C: B1/B3/B5/B8
    SIM7020E: B1/B3/B5/B8/B20/B28
    Control Via AT Commands
    Supply voltage range: 2.1V-3.6V
    Operation temperature: -40°C to +85°C
    Dimensions: 17.6 X 15.7 X 2.3mm
    Weight: 1.3g±0.2g

Data
    Uplink: 62.5Kbps
    Downlink:26.15Kbps

SMS
    Text and PDU mode

Consumption
    PSM: 5 uA


Other Features
    Firmware update via UART
    TCP/UDP
    LWM2M/COAP*
    MQTT
    FTP/HTTP/HTTPS*/SSL*/DTLS*
    FOTA *
    PSM/eDRX

Interfaces
    UART
    SIM card (1.8V/3V) GPIO
    ADC
    Netlight
    PSM_EINT
    Reset
    Powerkey

Certifications
    CCC / TA / CTA (SIM7020C)
    CE/GCF (SIM7020E)
    RoHS / REACH

Key Benefits
    With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020 can extend battery life to 10 years
    SIM7020 provides deeper coverage enhancement compared to GSM
    The package and AT commands of SIM7020 mostly are compatible with SIM800C.

* In development

Paket İçerigi:
    1 Adet Sim800 / SIM7020E Simcom LTE NB-IoT M2M Modül
