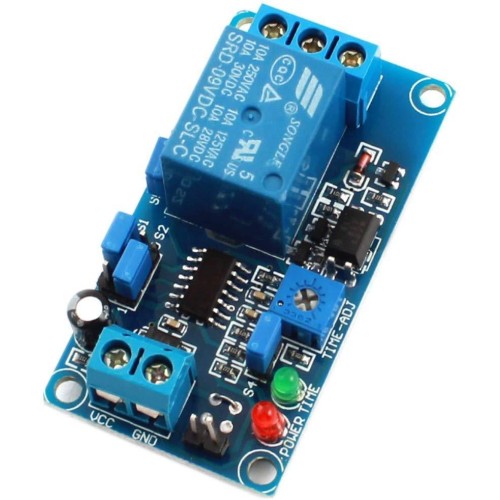

FC-31 Zaman Ayarlı Röle Modülü 12V

12v dc besleme gerilimine sahip zaman ayarlı röle devresi. Ekranlı olan modellerden farklı olarak zaman ayarlaması bu devre üzerinde bulunan pinler ve trimpot ile deneme yanılma ile yapılmaktadır.

Description:
    The module is normally open trigger module start .
    Output relays have normally open, normally closed selection, shortest time from 0.1s
    most up to 1 hour.
    Applications: DC motors or AC motors, home applications, delay energy-saving
    products, connected with the vibration sensor can do all kinds of alarm trigger delay,
    such as an earthquake alarm, burglar alarm, also be applied to the car to start
    automatically trigger control products, machinery and equipment to stop the alarm
    delay trigger.
    Wire Diagram: ( the picture show output connect COM & NO, when the time delay relay
    work, the light will light )
    Power supply 12v DC
    S1 and S2 are the pins which are used to set time delay.
    Follow the given below table to insert the jumpers to get desired time
    S4 jumper to get the suitable timer.
    If S4 jumper is not inserted means time can be set from 0.5s up to 340s (5.5mins).
    If S4 jumper is inserted means time can be set from 1.5s up to 3700s (1hour).
    S5 jumper is inserted means then it is used to connect 12v DC to common terminal
    of the relay (when 12v DC load is used).
    S5 jumper is not inserted means it is used to disconnect 12v DC from common
    terminal of the relay (when 230v AC load is used).
    To get ON the relay input must be given
    Input can be given by shorting the given two pins or external input can also give (5v
    or 12v)
    Pot to adjust time delay.

Özellikler:
    Model FC-31
    Normal Açık Türü
    Voltaj 12 V DC
    İletişim Kapasitesi 10A 250VAC / 125VAC / 30VDC / 28VDC
    5,5 x 2,9 x 1,8 cm / 2,2 "x 1,14" x 0,7 "(L * W * T)
    Renk mavi
    Ağırlık 28g



Paket İçerigi:
    1 Adet  FC-31 Zaman Ayarlı Röle Modülü 12V
