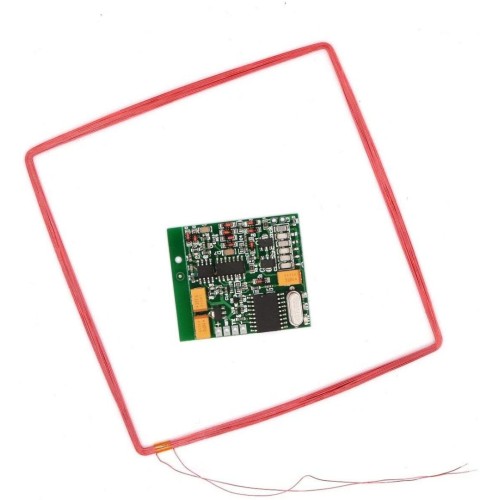

134.2K AGV RFID Animal Tag Reader Module TTL Long Distance
- Ürün Kodu:
- 2018-1-482
- Stok Durumu:
- 10
Vergiler Hariç: 8,33 ₺
- Aynı Gün Kargo 15:00'e kadar verilen siparişlerde
- Ücretsiz Kargo 3000 TL ve üzeri siparişlerde
- Kolay İade 14 gün içinde iade hakkı
-
Güvenli Ödeme 256 Bit SSL korumalı
Product description:
WL134 long-range reader module 134.2K/125KHZ
ISO11784/85 FDX-B, you can read EM4305, HITAG256, EM4001.
Users do not understand the complexity of the reader protocol, only need to provide power,
Card number to receive the serial output of the module comes with the warning lamp reader, multiple options to fine-tune the resonant capacitor.
WL-134 has excellent reading properties, the use of injectable
glass antenna 2X12mm label distance is greater than 0-18CM,
Diameter 3CM electronic ear tag distance of more than 5-36CM.
Module size: 43.43mm*34.65mm
Antenna size:130mm
Operating voltage: 5V (recommended to use lithium batteries as power supply)
Operating Current: 120mA
Output: TTL
UART communication interface, simple operation, baud rate of 9600 bit/s;
Paket İçeriği:
1 Adet RFID Module
1 Adet 97X97mm antenna
2 Adet ISO11785 tags.
